DIN-DALI-64 banner

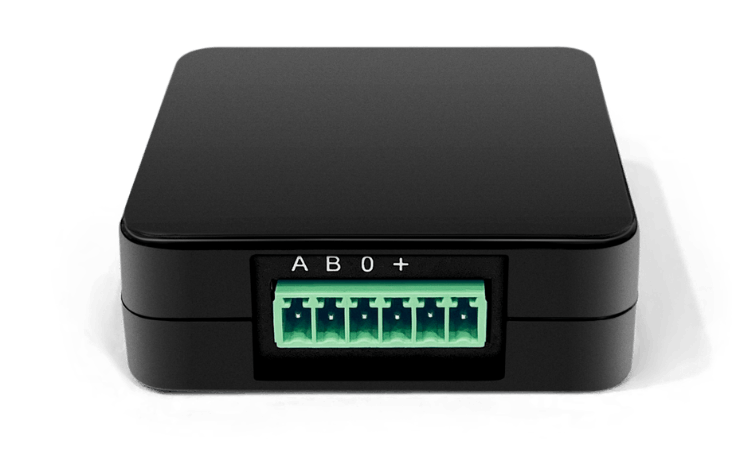

GRB

GRB

GO RAYNET Bridge
Add control of RS-485 RAYNET devices to the GO App

GRB

GO RAYNET Bridge
Add control of RS-485 RAYNET devices to the GO App
  • Width: 60 mm
  • Height: 60 mm
  • Depth: 21 mm
  • RAYNET RS-485 output port
  • Supports commands for a single RAYNET area
  • DC 12V 200mA via RAYNET bus or external DC power supply
  • Allows adding up to 36 channels of wired RAYNET control to the GO App
  • Allows two-way communication between wired RAYNET devices and the GO App
  • Allows using legacy RS-485 devices with the GO App
  • Adds voice and Cloud functionality to devices on the RAYNET bus
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • App
    iOS and Android phone control via the GO App
  • Scene Keypads
    Multi-way control via GO scene keypads
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Apple HomeKit
  • Siri Shortcuts

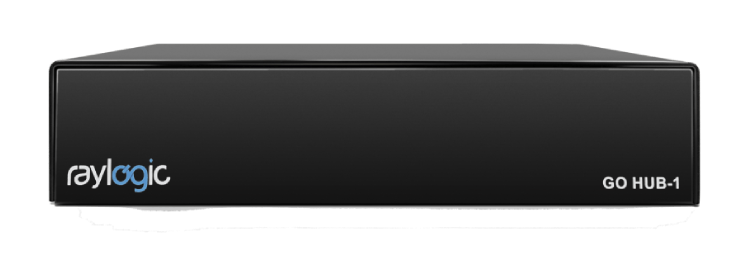

HUB-1
HUB-1

HUB-1

System processor for third-party operation of MOD and DIN products

HUB-1

System processor for third-party operation of MOD and DIN products
  • Width: 41 mm
  • Height: 181 mm
  • Depth: 135 mm
  • 12V 2A external DC power supply (adapter provided)
  • Increase the capacity of the MOD and DIN range of leading-edge dimmers from 50 - 300W to 600W (resistive)
  • Allow easy integration of larger loads such as chandeliers, high wattage lamps, etc.
  • Smooth dimming curve across dimming range

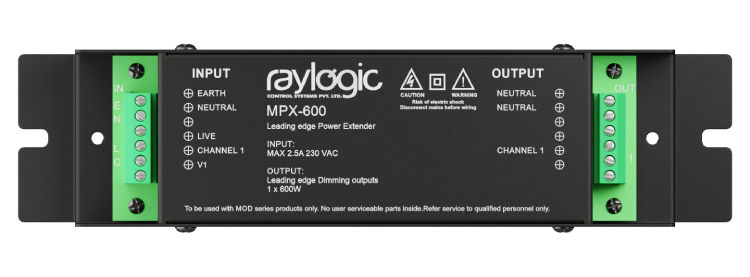

MPX-600 banner
MPX-600

MPX-600

MOD Power Expander
Leading-edge dimmer input / output capacity expander

MPX-600

MOD Power Expander
Leading-edge dimmer input / output capacity expander
  • Width: 60 mm
  • Height: 221 mm
  • Depth: 48 mm
  • Input driven by output of leading-edge dimmer
  • Separate power terminals for high power output section
  • Input and output must be on the same electrical phase
  • Increase the capacity of the MOD and DIN range of leading-edge dimmers from 50 - 300W to 600W (resistive)
  • Allow easy integration of larger loads such as chandeliers, high wattage lamps, etc.
  • Smooth dimming curve across dimming range
  • Leading-Edge Dimming Prdoducts - MOD-2 U, MOD-4 U, DIN-H81
  • Automatic frequency tracking
  • App
    iOS and Android phone control via the GO App
  • Scene Keypads
    Multi-way control via GO scene keypads
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Apple HomeKit
  • Siri Shortcuts

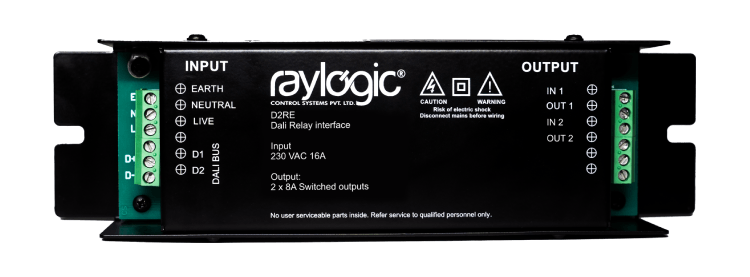

D2RE banner
D2RE

D2RE

DALI to dual relay interface

D2RE

DALI to dual relay interface
  • Width: 60 mm
  • Height: 221 mm
  • Depth: 48 mm
  • 2 x 8A relay outputs, operating on 1 DALI address
  • Suitable for non-dimming loads / single curtains and blinds
  • 2 x 8A relay outputs, operating on 1 DALI address
  • Suitable for non-dimming loads / curtains and blinds
  • DALI IEC-62386 works with Raylogic
  • DIN-DALI-64 KNX / RS-485
  • Allows simple relay on / off operation on the DALI bus
  • Allows simple curtain control over DALI with adjustable duration settings via DIP switch
  • Power On / Sys Fail settings via DALI parameter setup
  • 16 scene settings via DALI parameter setup
  • 16 DALI groups
  • No complex bridges or interfaces required
  • DALI Bus
  • DALI2 Bus
  • External Fuses required in panel for protection.
  • When used with Raylogic DIN-DALI-64
    • App
      iOS and Android phone control via the GO App
    • Scene Keypads
      Multi-way control via scene keypads
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Apple HomeKit
  • Siri Shortcuts

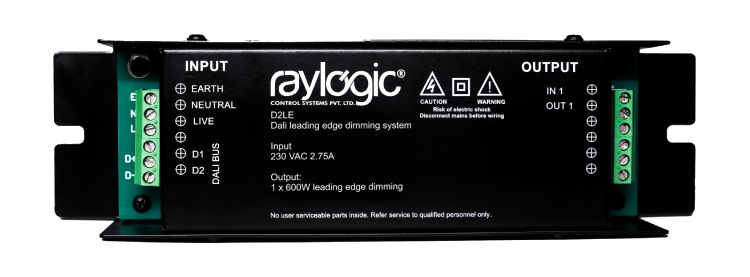

D2LE banner
D2LE

D2LE

DALI to leading-edge driver

D2LE

DALI to leading-edge driver
  • Width: 60 mm
  • Height: 221 mm
  • Depth: 48 mm
  • 2.75A Max. (resistive load)itching mains supply of all drivers mentioned above
  • 600W Leading-edge TRIAC dimmable output
  • Internal fuse protection
  • Smooth dimming
  • DALI IEC-62386 works with
  • Raylogic DIN-DALI-64 KNX / RS-485
  • Allows high-power leading-edge dimmer functionality on the DALI bus
  • Min. / Max. settings via DALI parameter setup
  • Power On / Sys Fail settings via DALI parameter setup
  • 16 scenes / fade time settings via DALI parameter setup
  • 16 DALI groups
  • No complex bridges or interfaces required
  • DALI Bus
  • DALI2 Bus
  • External Fuses required in panel for protection.
  • When used with Raylogic DIN-DALI-64
    • App
      iOS and Android phone control via the GO App
    • Scene Keypads
      Multi-way control via scene keypads
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Apple HomeKit
  • Siri Shortcuts

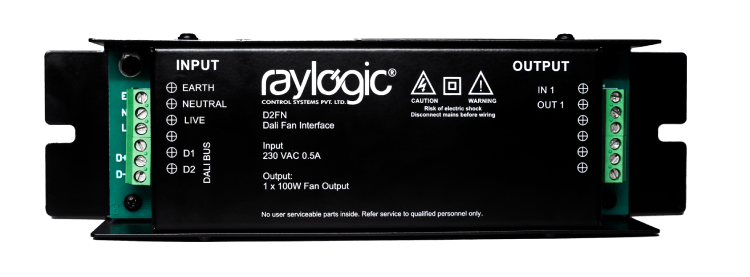

D2FN banner
D2FN

D2FN

DALI to ceiling fan interface

DIN-HU4

DALI to ceiling fan interface
  • Width: 60 mm
  • Height: 221 mm
  • Depth: 48 mm
  • 100VA ceiling fan
  • Suitable for regular ceiling fans
  • 1 x 100W ceiling fan speed controller, operating on 1 DALI address
  • Suitable for non-BLDC ceiling fan loads or BLDC fans supporting passive regulator operation
  • DALI IEC-62386 works with Raylogic
  • DIN-DALI-64 KNX / RS-485
  • Allows simple fan speed control on the DALI bus
  • Power On / Sys Fail settings via DALI parameter setup
  • 16 scenes settings via DALI parameter setup
  • 16 DALI groups
  • No complex bridges or interfaces required
  • DALI Bus
  • DALI2 Bus
  • External Fuses required in panel for protection.
  • When used with Raylogic DIN-DALI-64
    • App
      iOS and Android phone control via the GO App
    • Scene Keypads
      Multi-way control via scene keypads
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Apple HomeKit
  • Siri Shortcuts

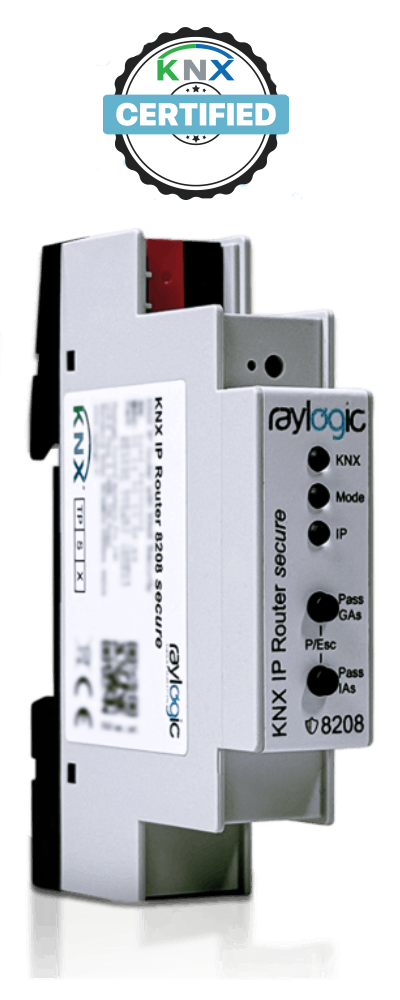

Raylogic 8208 KNX IP Router Secure

Smarter Integration. Faster Communication. Future-Ready Control.

The Raylogic 8208 KNX IP Router is the new backbone for intelligent building automation. Designed for high-performance routing across KNX bus lines via IP networks, this compact DIN-rail device delivers speed, flexibility, and secure connectivity for modern installations.

820-knx
Product Highlights
  • Bidirectional KNX Routing via LAN (IP/Ethernet)
  • ETS® Programming Interface for KNX Bus Configuration
  • Dynamic or Manual IP Assignment (DHCP or ETS Parameters)
  • Protocol-Compliant with KNXnet/IP Standards
  • Compact DIN Rail Design (1 MCB / 18 mm)
  • Multicolor LEDs + Buttons for Local Diagnostics
  • Supports Up to 8 KNXnet/IP Tunneling Connections
  • Extended Filter Table for Group Addresses 0-31
  • KNX Bus Powered (~20 mA)
  • AN Interface: RJ-45 (100BaseT)
  • Supported Protocols: ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP, Auto IP
  • KNX Medium: IP/TP
  • Third-Party Integration Ready: Seamlessly interfaces with leading automation processor systems using KNXnet/IP tunneling or multicast protocols
Ideal Applications
  • Residential & Commercial Automation
  • Multi-line KNX Bus Integration
  • Secure IP Backbone for Smart Buildings
  • Remote Programming via ETS over LAN
  • Third-Party Integration Ready: Seamlessly interfaces with leading automation processor systems using KNXnet/IP tunneling or multicast protocols

Control 4 IP Driver

Wireless / Wired Lighting Control Systems

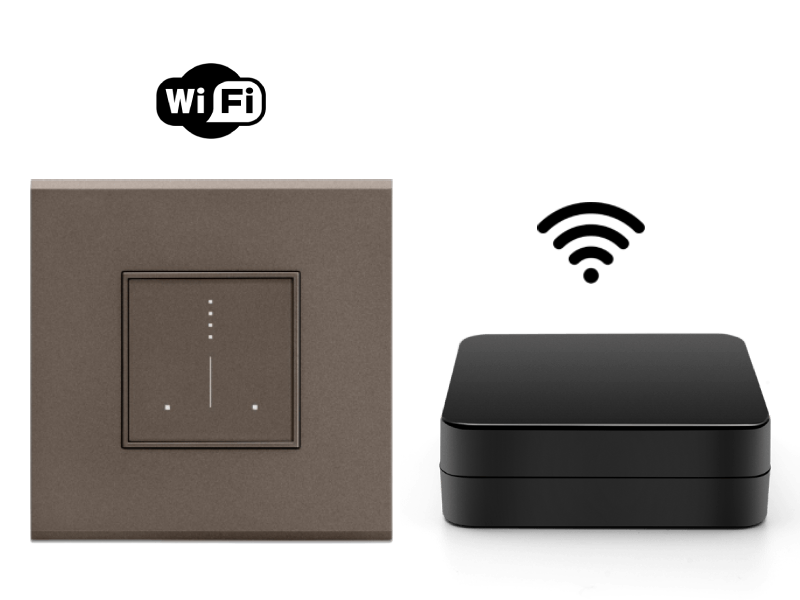

Raylogic GO wireless range
Control 4
  • Wireless modular iOT lighting controls with universal switching / dimming / fan controls
  • AV controls via IR blaster

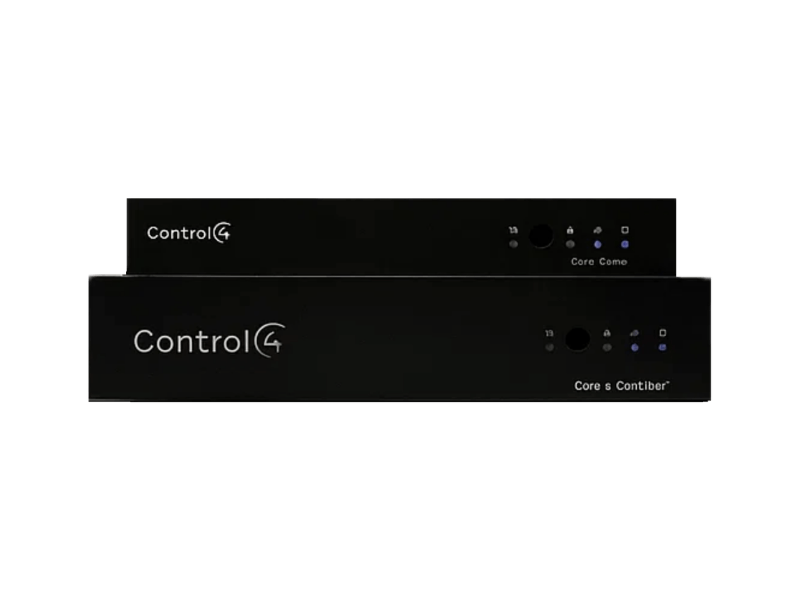

Choice of C4 processors
Control 4
  • IP driver with full feedback
  • Driver linked to each processor
  • Demo version available for 7 day evaluation

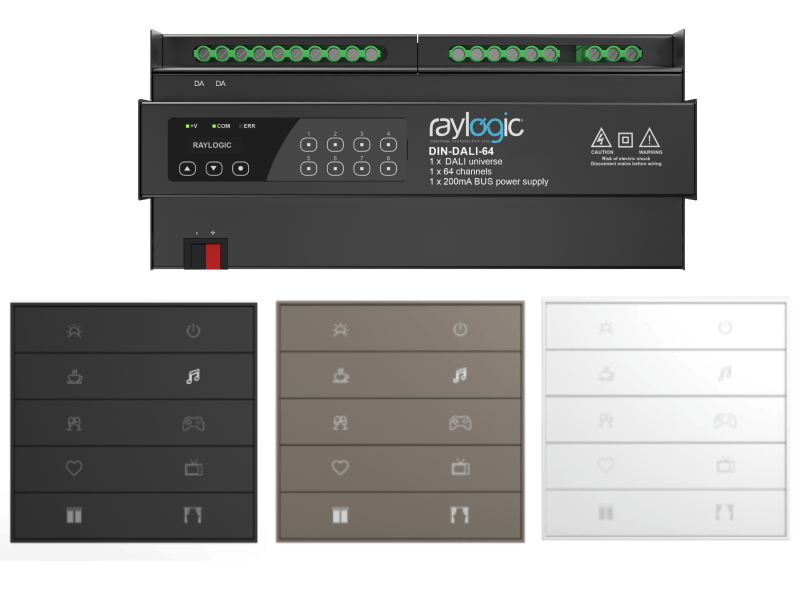

Raylogic Wired actuators & Keypads
Control 4
  • Wired RS - 485 / KNX/ IP actuators
  • 6/8/10 button keypads in plastic, glass and metal finishes, with touch and tactile options
Actuators For
  • Relay and curtain control
  • Hum-free span speed control
  • Leading and trailing edge / universal dimming
  • Analog 0-10V, PWM, DALI Broadcast
  • DALI 2, DT0, DT6, DT8, DMX-512
