DIN-DALI-64 banner
DIN-DALI-128 DIN-DALI-128

DIN-DALI-64

DALI control system for DT0 / DT6 / DT8 drivers and fixtures

DIN-DALI-64

DALI control system for DT0 / DT6 / DT8 drivers and fixtures
  • Width: 215 mm
  • Height: 100 mm
  • Depth: 66 mm
  • Dimming of lamps fitted with DALI DT0 / DT6 / DT8 dimmable drivers
  • CTC / RGBWAF control with DALI DT8
  • 64 fixture configuration data stored in non-volatile scene memory
  • Broadcast commands for all channels, groups etc
  • DALI groups mapped to RAYNET areas
  • Last scene and channel level recall on power up
  • Front panel group controls
  • Internal webserver for setup of address, areas, scenes Status LEDs
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • RAYNET -RS-485 and Raylogic ControlSoft programming
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-RE8 banner
DIN-RE8 DIN-RE8

DIN-RE8

Digital relay interface suitable for switching lamp loads, curtain motors etc.

DIN-RE8

Digital relay interface suitable for switching lamp loads, curtain motors etc.
  • Width: 215 mm
  • Height: 100 mm
  • Depth: 58 mm
  • Switching of non-dimmable LED lights
  • Switching of high power conventional lamps and lighting sources
  • Control of curtain motors for centre parting, roll up and all types of curtain systems
  • Control of motorised screens, motorised lifts etc.
  • Mains on / off control of non-inductive applications such as AV equipment, displays, TVs etc.
  • 60 non-volatile scene memory
  • Individual scene fade time
  • Creates up to 16 areas
  • Last scene and channel level recall on power up
  • Front panel channel controls
  • Internal webserver for setup of address, areas, scenes Status LEDs
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • Turn on / off of lighting loads with delay / fade time Open / close / raise / lower of motorised curtains, screens, lifts
  • Adjustable operation time for motor operations Digital interlock of motor pairs to prevent damage to motors
  • Raylogic sync switch
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-H81 banner
DIN-H81 DIN-H81

DIN-H81

DIN Rail mounted 8 channel dimming system

DIN-H81

DIN Rail mounted 8 channel dimming system
  • Width: 215 mm
  • Height: 100 mm
  • Depth: 66 mm
  • LED lights with leading-edge dimmable drivers. Max. 150 W/VA per channel
  • LED lights with in-built TRIAC dimmable drivers. Max. 150W/VA per channel
  • Low voltage halogen with control gear suitable for leading-edge dimming. Max. 300 W/VA per channel Tungsten filament lamps, GLS bulbs, PAR spot lights. Max. 300 W/VA per channel Neon and cold cathode lamps with special dimmable control gear (limited dimming range)
  • 8 x 1.25A leading-edge dimming circuits
  • 60 non-volatile scene memory Individual scene fade time Creates up to 16 areas
  • Last scene and channel level recall on power up
  • Front panel channel controls
  • Internal webserver for setup of address, areas, scenes Status LEDs
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • Thermal overload cut-off
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • Flicker-free digital dimming from 0-100% Soft turn on
  • Over-voltage protection Brownout protection
  • Automatic frequency tracking
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-FN4 banner
DIN-FN4 DIN-FN4

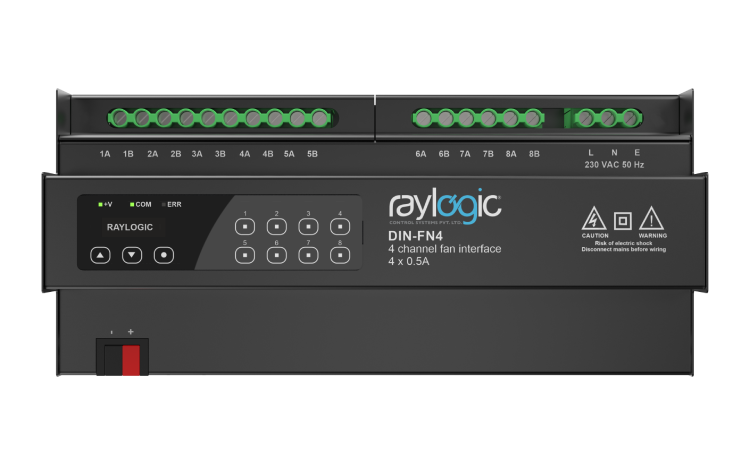

DIN-FN4

Digital fan control system for hum-free fan speed control

DIN-FN4

Digital fan control system for hum-free fan speed control
  • Width: 215 mm
  • Height: 100 mm
  • Depth: 66 mm
  • 5 speed control of regular AC motor ceiling fans
  • 5 speed control of BLDC fans that work on normal switched regulators
  • 60 non-volatile scene memory
  • Individual scene fade time
  • Creates up to 16 areas
  • Last scene and channel level recall on power up
  • Front panel channel controls
  • Internal webserver for setup of address, areas, scenes Status LEDs
  • 4 x 0.5 A Fan loads. 125 W / VA Max. per channel
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • Thermal overload cut-off
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-F8 banner
DIN-F8 DIN-F8

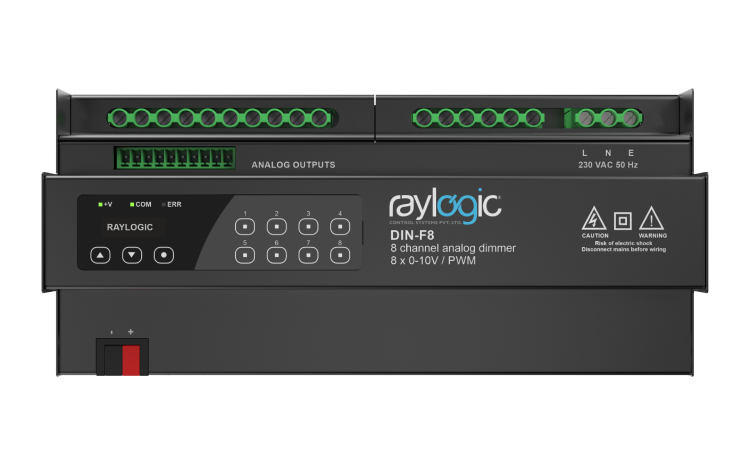

DIN-F8

Analog dimming system 0-10V, PWM, DALI Broadcast with relay interface

DIN-F8

Analog dimming system 0-10V, PWM, DALI Broadcast with relay interface
  • Width: 215 mm
  • Height: 100 mm
  • Depth: 66 mm
  • Dimming of lamps fitted with Analog 1-10V & 0-10V and PWM dimmable drivers
  • Dimming of lamps fitted with DALI drivers in broadcast mode
  • Relay controls for switching mains supply of all drivers mentioned above
  • 60 non-volatile scene memory
  • Individual scene fade time
  • Creates up to 16 areas
  • Last scene and channel level recall on power up
  • Front panel channel controls
  • Internal webserver for setup of address, areas, scenes Status LEDs
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • 8 x Analog outputs selectable for 0-10 V / 1-10V
  • 8 x Analog outputs selectable for PWM signals
  • 8 x Analog outputs selectable for DALI BC mode
  • 8 x Relays for driver power control of above driver types
  • Raylogic sync switch
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-HU4 banner
DIN-HU4 DIN-HU4

DIN-HU4

Digital dimming system suitable for leading or trailing edge dimmable drivers and lamps

DIN-HU4

Digital dimming system suitable for leading or trailing edge dimmable drivers and lamps
  • Width: 215 mm
  • Height: 100 mm
  • Depth: 66 mm
  • LED lights with leading/trailing-edge dimmable drivers. Max. 150 W/VA per channel
  • LED lights with in-built leading/trailing-edge dimmable drivers. Max. 150W/VA per channel
  • Low voltage halogen with control gear suitable for leading/trailing-edge dimming. Max. 300 W/VA per channel
  • Tungsten filament lamps, GLS bulbs, PAR spot lights. Max. 300 W/VA per channel
  • 4 x 1.25A leading/trailing-edge dimming circuits
  • All 4 channels may be set as either leading or trailing-edge
  • 60 non-volatile scene memory Individual scene fade time Creates up to 16 areas
  • Last scene and channel level recall on power up Front panel channel controls
  • Internal webserver for setup of address, areas, scenes Status LEDs
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • Thermal overload cut-off
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
LDX-405-CV banner
DLDX-405-CV

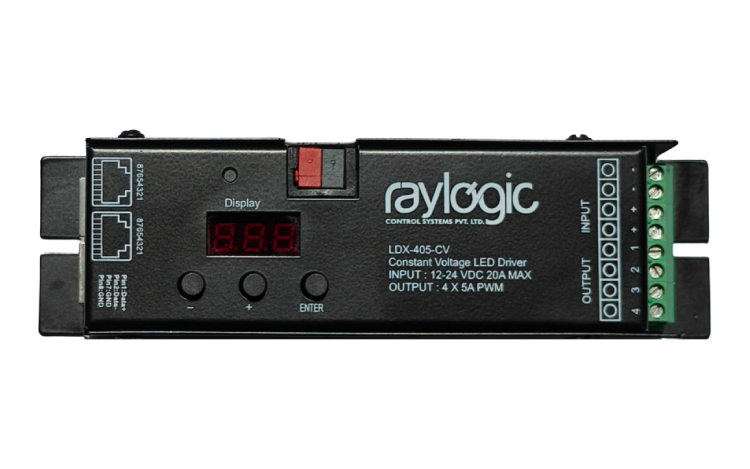

LDX-405-CV

4 channel PWM controller for constant voltage, RGB and tunable white LED strips. Requires an external power supply

LDX-405-CV

4 channel PWM controller for constant voltage, RGB and tunable white LED strips. Requires an external power supply
  • Width: 160 mm
  • Height: 100 mm
  • Depth: 80 mm
  • 4 channels of PWM controls x 5A (12 VDC 60W / 24V 120W per channel)
  • Smooth dimming for LED strips
  • Smooth dimming and colour for RGB and RGB+W channels
  • Smooth dimming and tunable white (TW) channels
  • Parallel mode operation for 20A load rating (12V 240W / 24V 480W All 4 channels combined with single channel control)
  • Direct channel intensity and fade time control
  • Scene fade time programmable between 0 - 250 seconds
  • 16 groups or areas
  • Internal non volatile memory for 60 scenes
  • 1 byte and 2 byte colour temperature control (KNX)
  • 1 byte and 3 byte RGB colour selection (KNX)
  • KNX
  • RS-485
  • DMX-512
  • External fuses required in panel for protection
  • iOS and Android control via the GO App and GRB hardware
  • Control via Raylogic keypads direct on RAYNET BUS
  • DMX-512 control via DMX control desks / software and hardware
  • Control via KNX keypad and app
  • Voice control requires the GO App and GRB hardware along with this product
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
