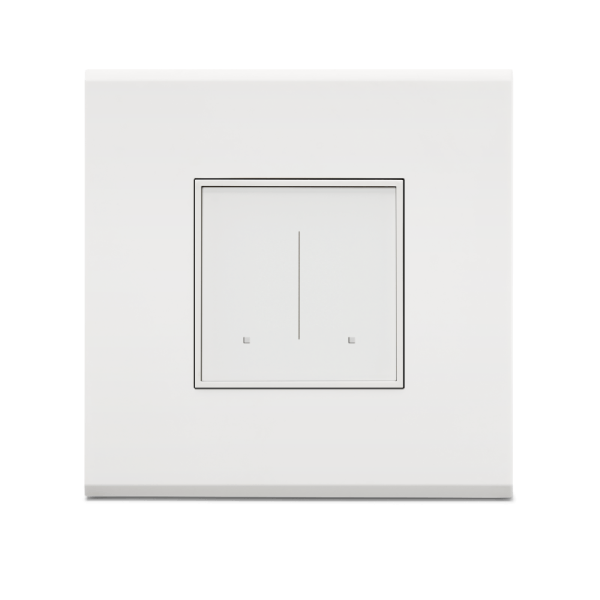

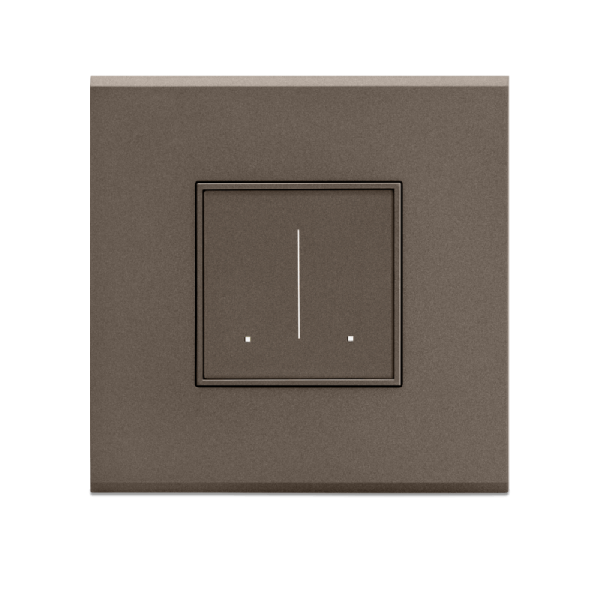

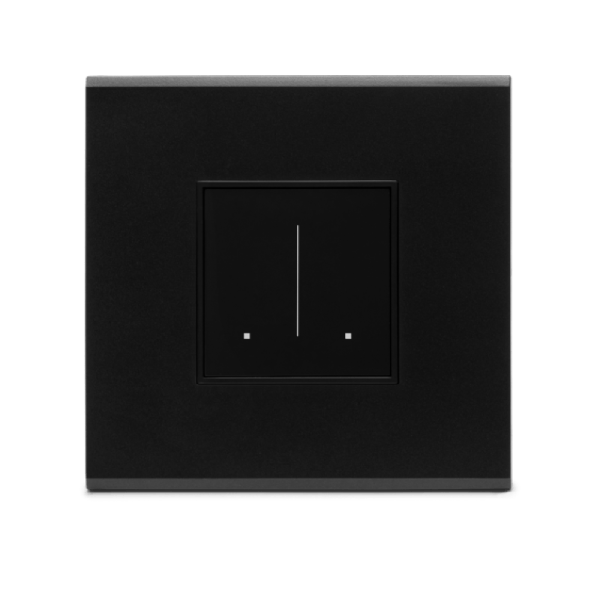

MOD-2U

MOD-2U

MOD-2U

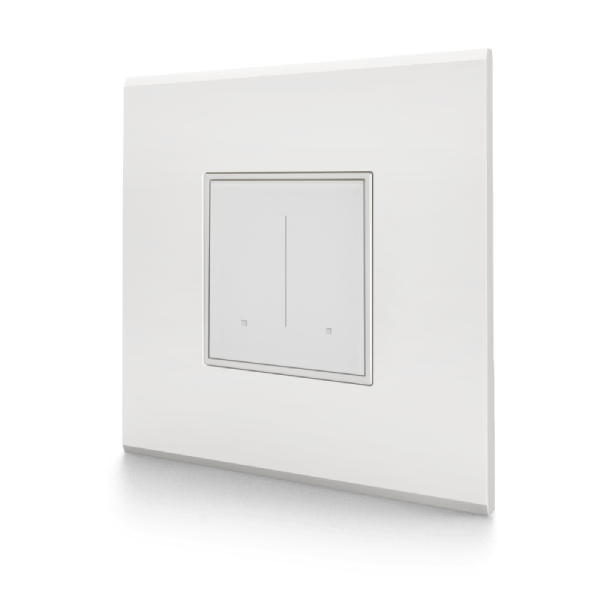

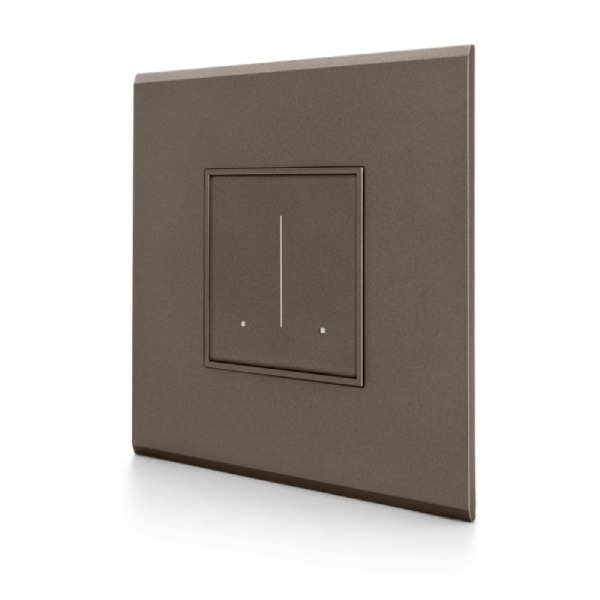

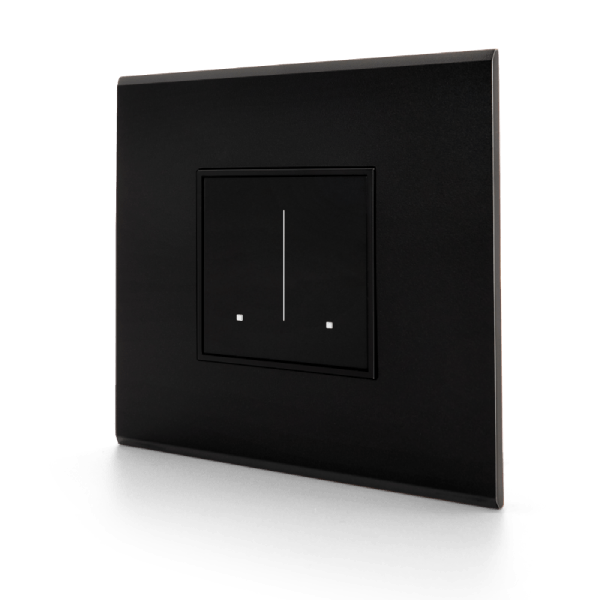

2 channel universal configurable automation module

2 module backbox
Width [Plate*]: 93 mm
Height [Plate*]: 90 mm
Depth [Module]: 42 mm standard
*Subject to plate finish

Wi-Fi 802.11 b/g/n AES 256 secured
Wi-Fi SSID strength and diagnostics
GO Cloud access using secure TLS 1.2
Firmware update via secure OTA
Third party control and large volume deployment via an additional hub

Output Load Types

2 configurable circuits

Dimming	LED lamps with leading edge dimmable drivers <= 60W/VA
Switching	Incandescent/LED/Halogen lights <= 100W/VA
Fans	Regular ceiling and wall fans <= 100W/VA
Curtains	Curtains/blinds x 1 motor <= 150W/VA

Automatic frequency tracking
Output fuse for short circuit protection
Temperature monitoring and overheat warning
UL-94V0 flame resistant polycarbonate enclosure

Front panel on/off and optional dimming controls
Pre-settable indicator LED brightness
Non-volatile memory for scenes, schedules, timers and last state storage
Notifications for lights/fans/loads that have been left on for more than a certain duration, or past a given time

Control Methods

Touch	Direct operation via front panel touch switches
App	iOS and Android phone control via the GO App
Scene Keypads	Fixed multi-way control via in-wall GO Scene Keypads
Voice Control	Alexa GO Voice Skill Google Home GO Voice Action IFTTT GO by Raylogic Service Siri Shortcuts

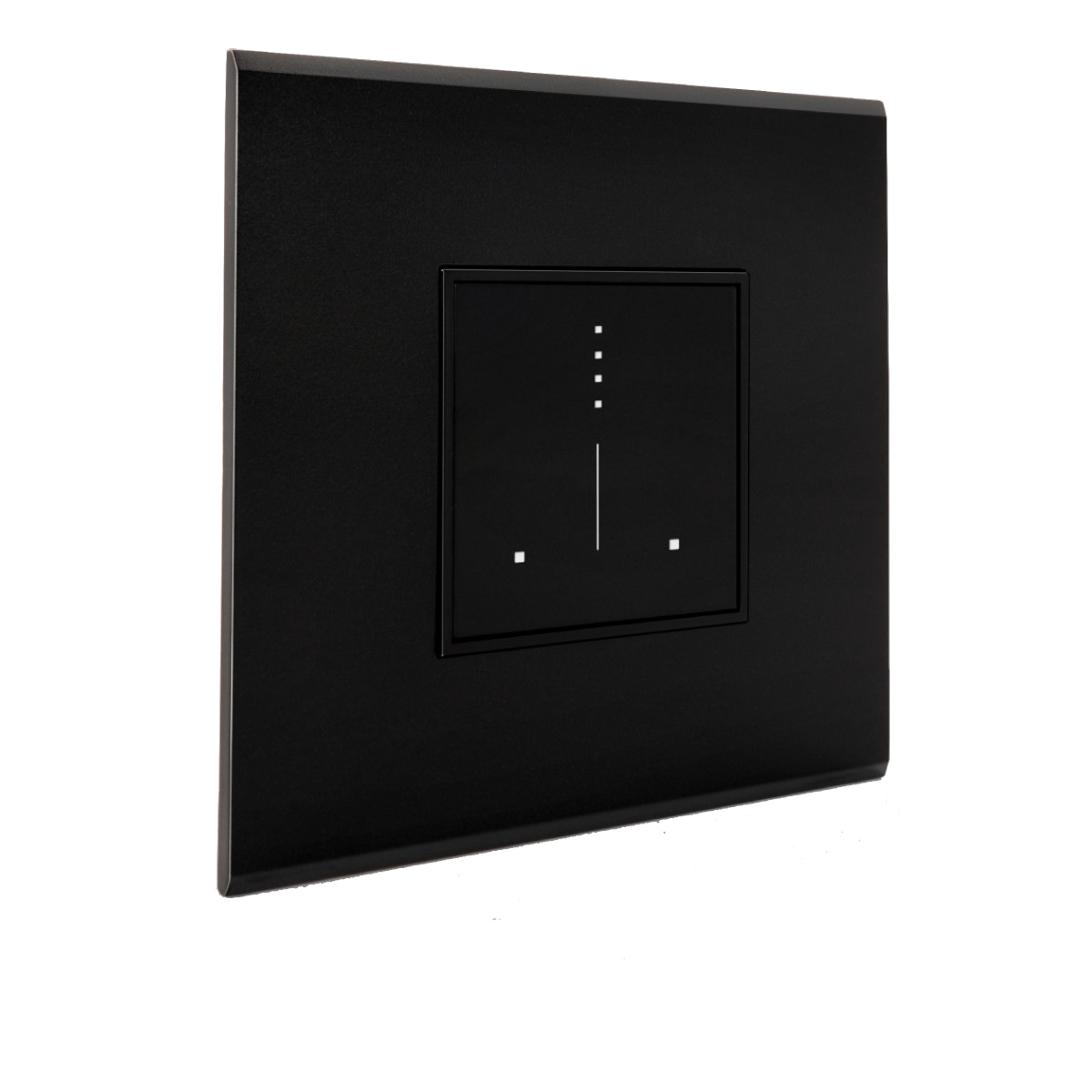

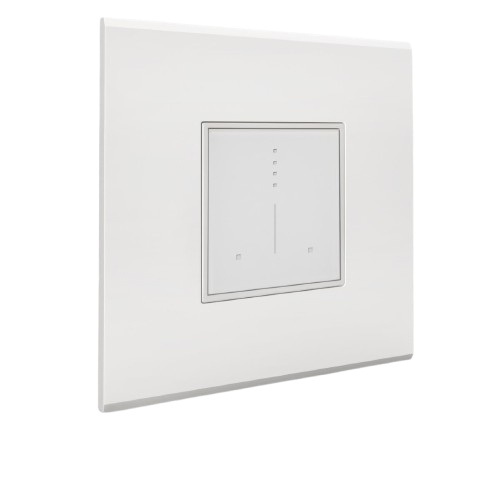

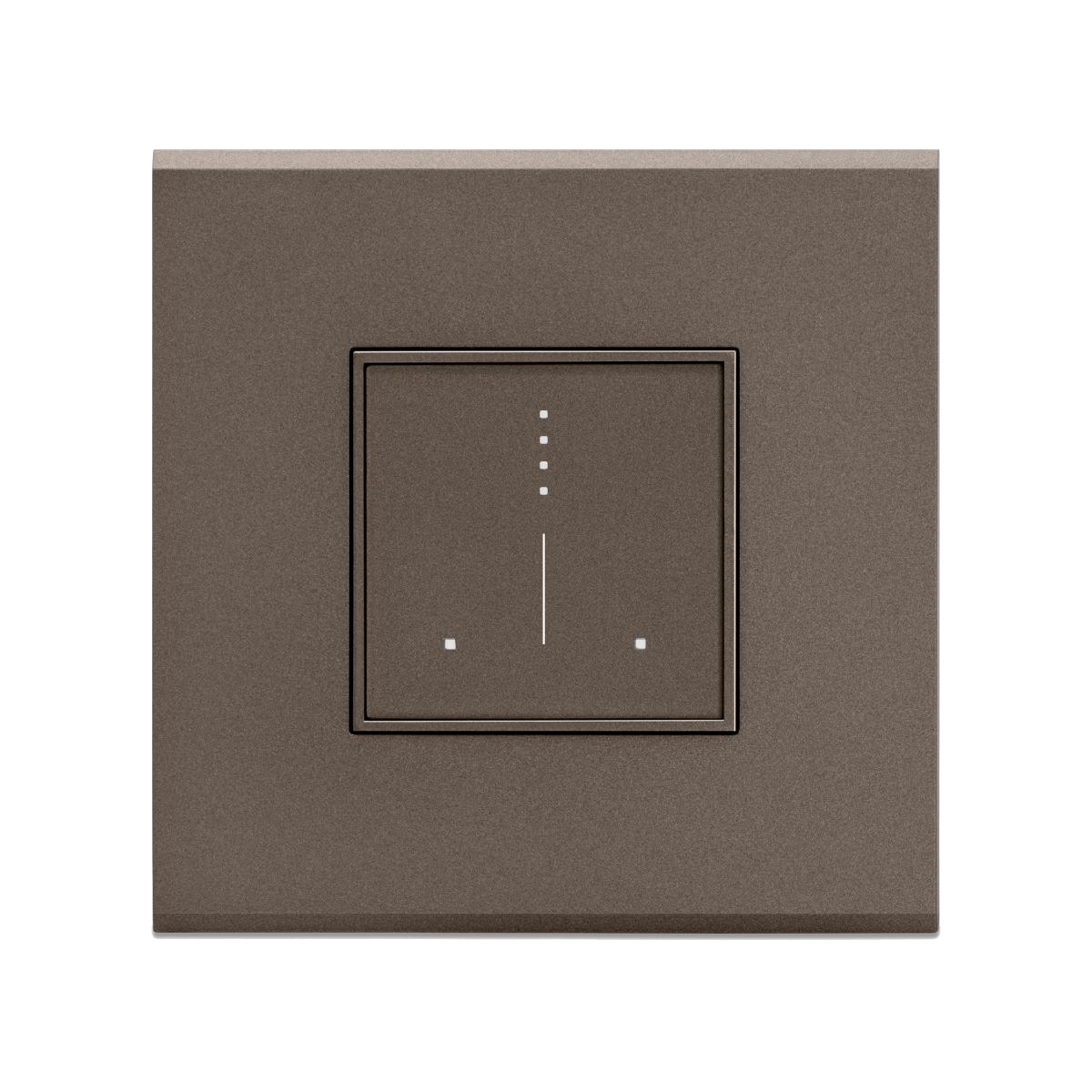

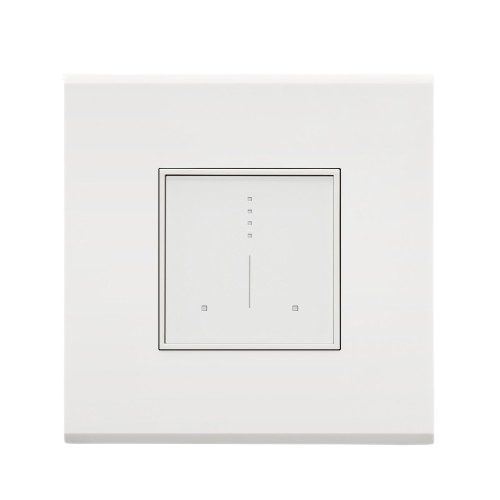

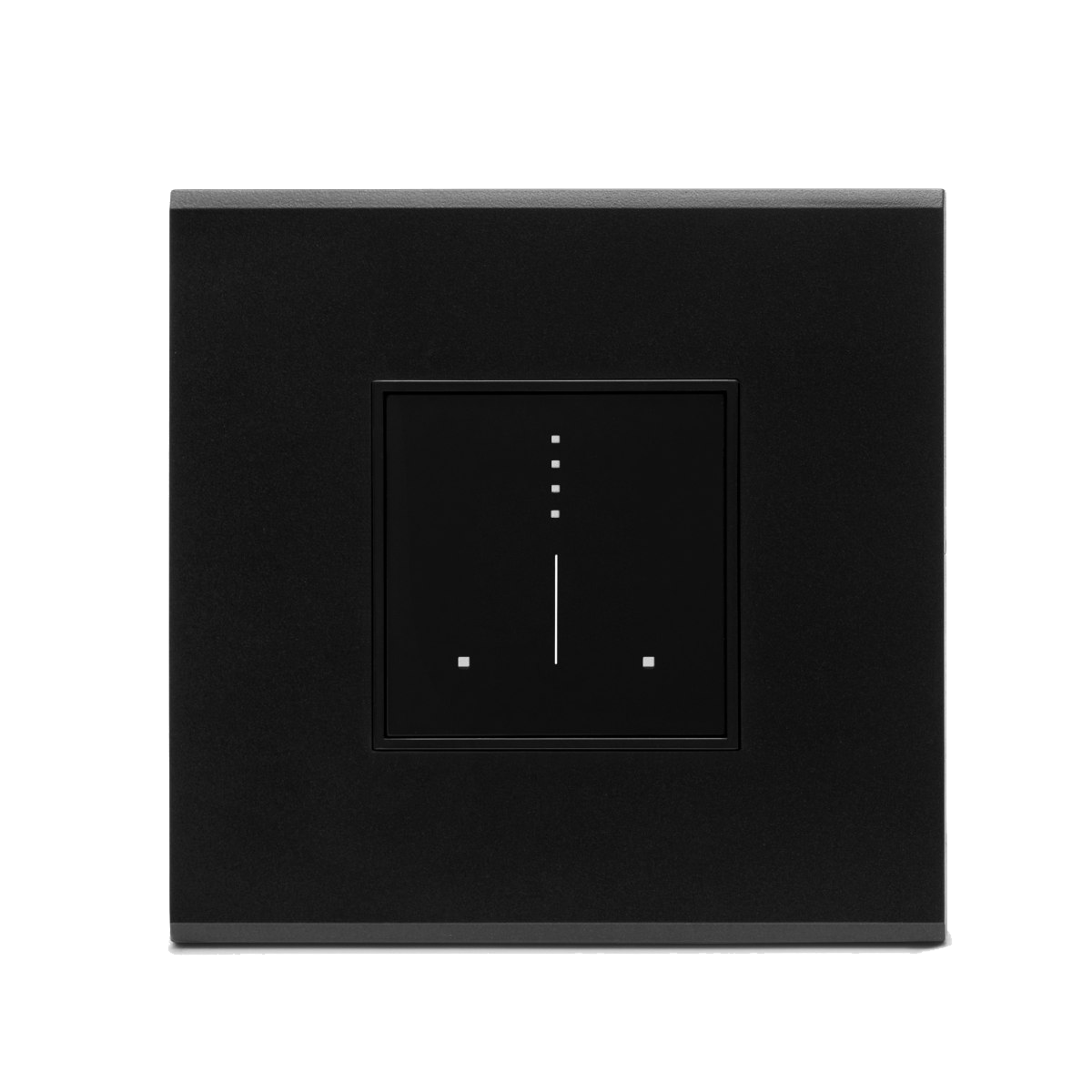

MOD-2F

MOD-2F

MOD-2 F

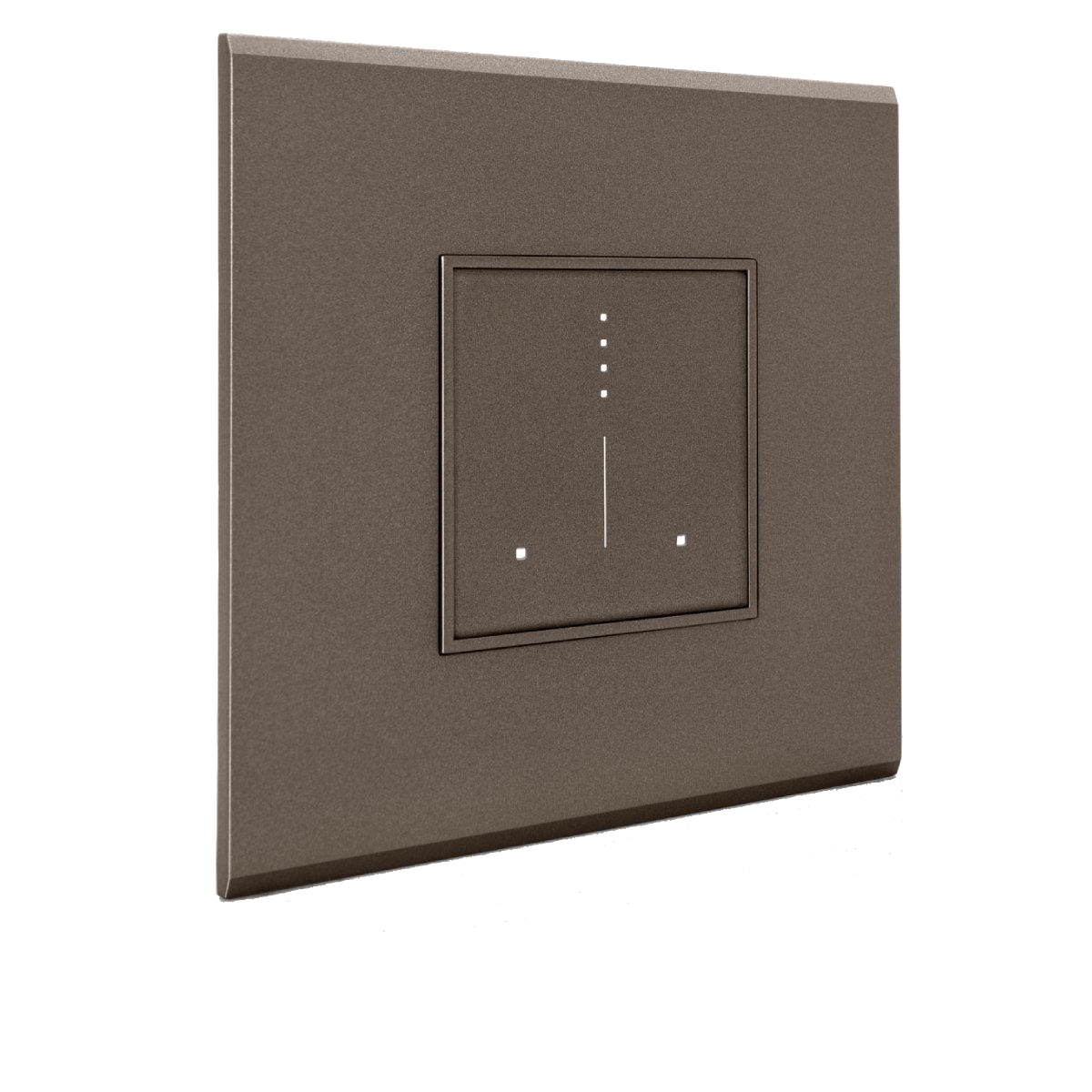

Single channel hum-free fan control module

2 module backbox
Width [Plate*]: 93mm
Height [Plate*]: 90mm
Depth [Module]: 42 mm standard
*Subject to plate finish

Output Load Types

1 circuit

Fans

Regular ceiling and wall fans <= 150W/VA

Wi-Fi 802.11 b/g/n AES 256 secured
Wi-Fi SSID strength and diagnostics
GO Cloud access using secure TLS 1.2
Firmware update via secure OTA
Third party control and large volume deployment via an additional hub

Output fuse for short circuit protection
Temperature monitoring and overheat warning
Internal resettable thermal fuse for fan loads
UL-94V0 flame resistant polycarbonate enclosure

5-step direct fan speed control
Fan speed level indicator LEDs
Pre-settable indicator LED brightness
Notifications for fans that have been left on for more than a certain duration, or past a given time
Inbuilt real time clock for scene scheduling

Control Methods

Touch	Direct operation via front panel touch switches
App	iOS and Android phone control via the GO App
Scene Keypads	Fixed multi-way control via in-wall GO Scene Keypads
Voice Control	Alexa GO Voice Skill Google Home GO Voice Action IFTTT GO by Raylogic Service Siri Shortcuts

-

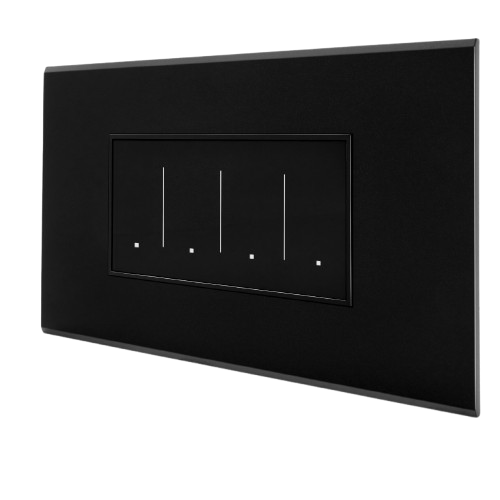

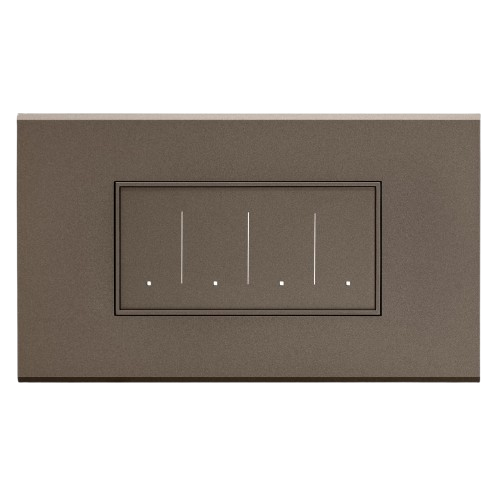

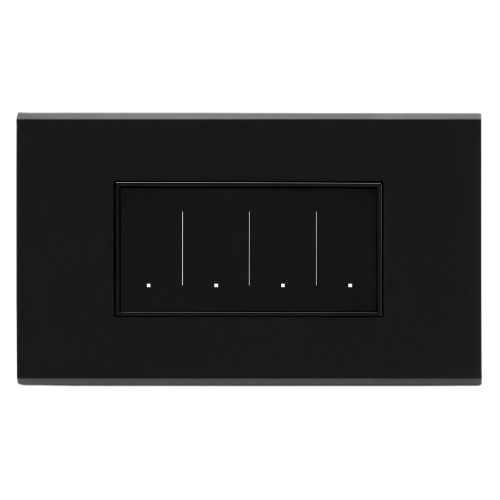

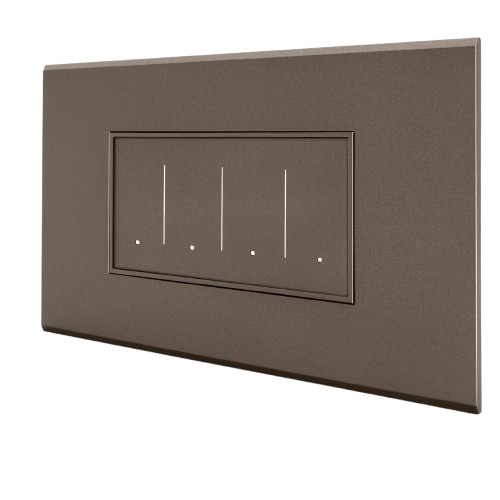

MOD-4 U

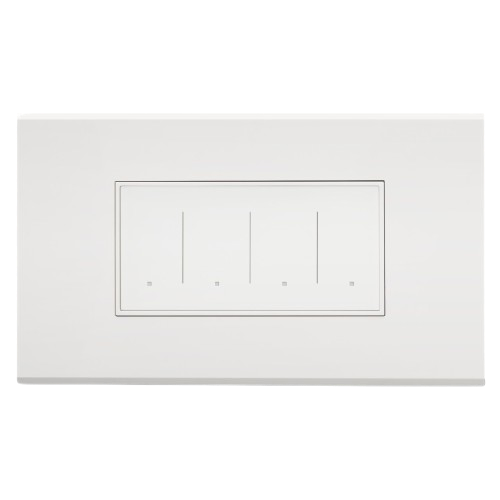

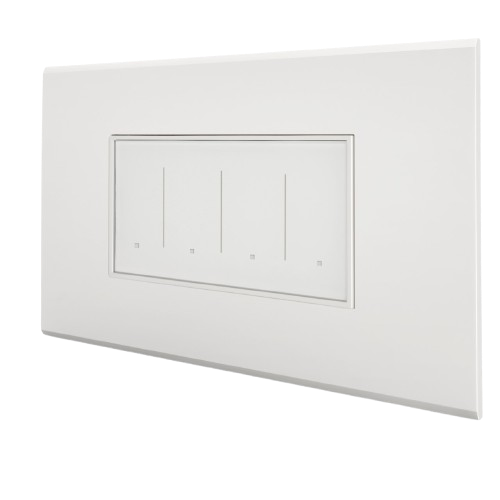

4 channel universal configurable automation module

4 module backbox
Width [Plate*]: 220 mm
Height [Plate*]: 90 mm
Depth [Module]: 42 mm standard
*Subject to plate finish

Wi-Fi 802.11 b/g/n AES 256 secured
Wi-Fi SSID strength and diagnostics
GO Cloud access using secure TLS 1.2
Firmware update via secure OTA
Third party control and large volume deployment via an additional hub

Output Load Types

4 configurable circuits

Dimming	LED lamps with leading edge dimmable drivers <= 60W/VA
Switching	Incandescent/LED/Halogen lights <= 100W/VA
Fans	Regular ceiling and wall fans <= 100W/VA
Curtains	Curtains/blinds x 1 motor <= 150W/VA

Automatic frequency tracking
Output fuse for short circuit protection
Temperature monitoring and overheat warning
UL-94V0 flame resistant polycarbonate enclosure

Front panel on/off and optional dimming controls
Pre-settable indicator LED brightness
Non-volatile memory for scenes, schedules, timers and last state storage
Notifications for lights/fans/loads that have been left on for more than a certain duration, or past a given time

Control Methods

Touch	Direct operation via front panel touch switches
App	iOS and Android phone control via the GO App
Scene Keypads	Fixed multi-way control via in-wall GO Scene Keypads
Voice Control	Alexa GO Voice Skill Google Home GO Voice Action IFTTT GO by Raylogic Service Siri Shortcuts

-

-

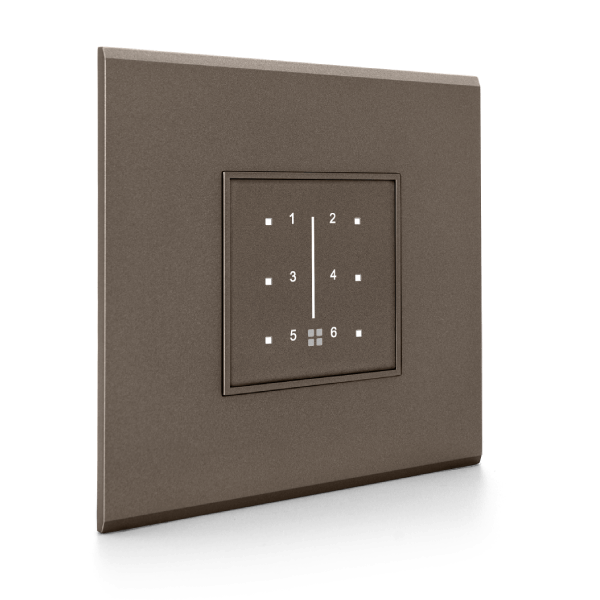

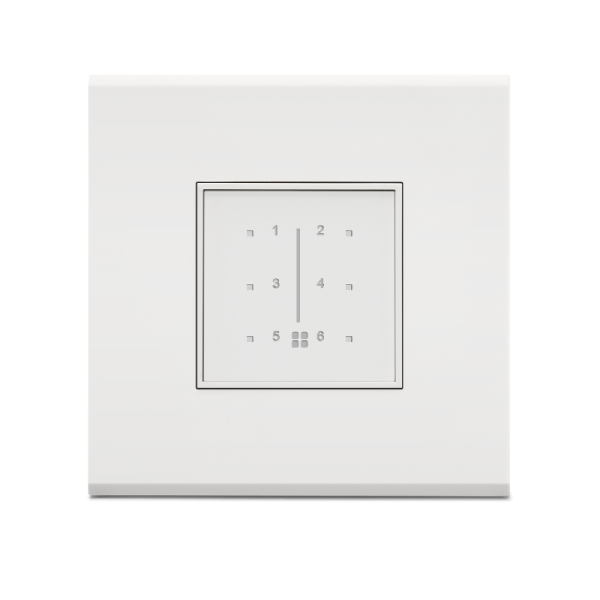

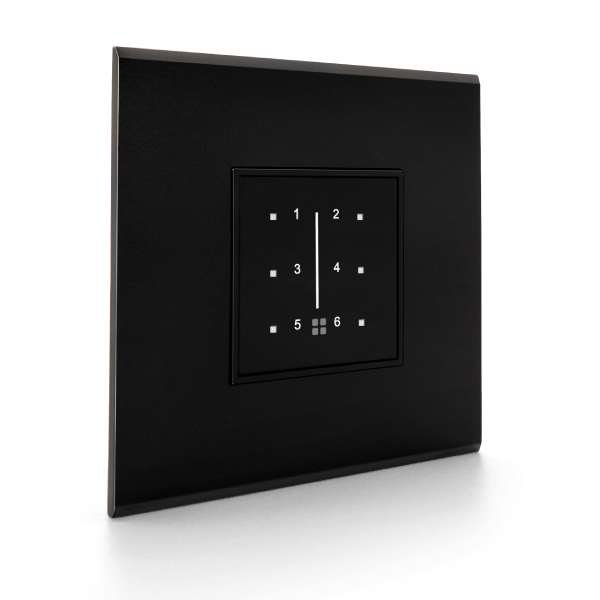

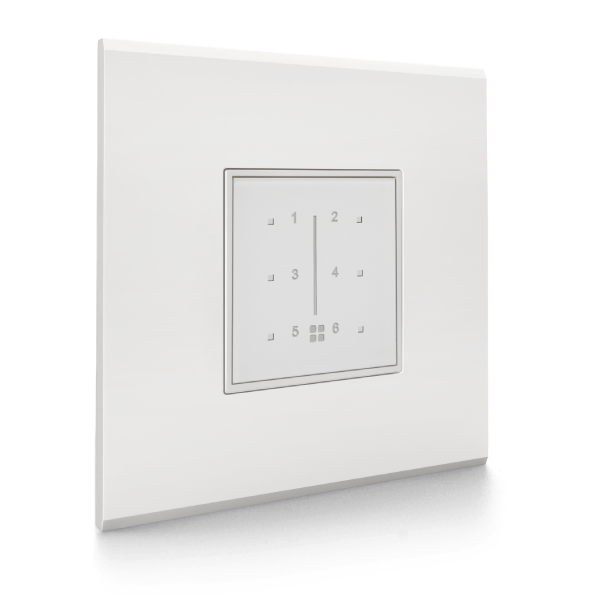

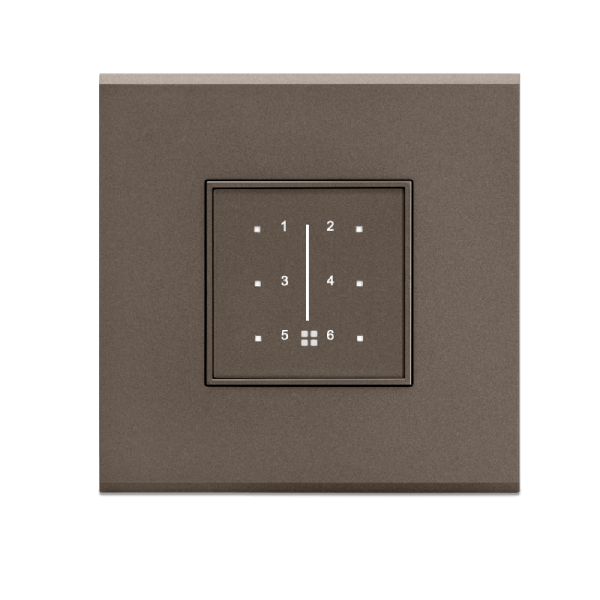

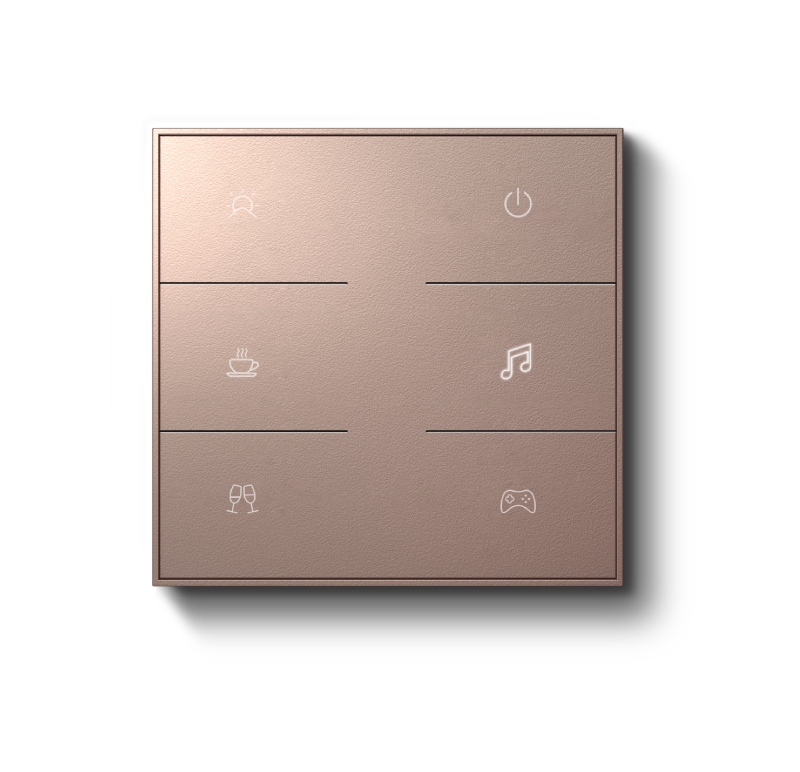

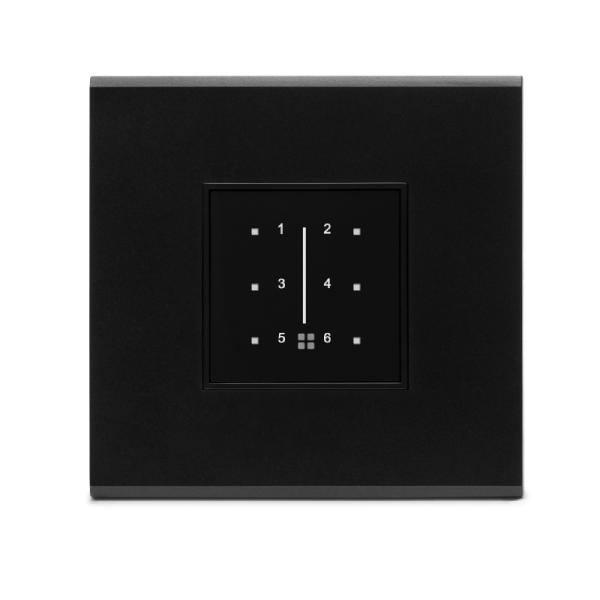

SCN-6

6 scene selector module

2 module backbox
Width [Plate*]: 93 mm
Height [Plate*]: 90 mm
Depth [Module]: 42 mm standard
*Subject to plate finish

Wi-Fi 802.11 b/g/n AES 256 secured
Wi-Fi SSID strength and diagnostics
GO Cloud access using secure TLS 1.2
Firmware update via secure OTA
Third party control and large volume deployment via an additional hub

Turn on and off up to 6 configurable scenes, sequences or timers
Allow 2 or multi-way control from entrance, bedside and additional locations
Enables simple master room control for users, staff etc.
Front panel scene selection
Pre-settable LED brightness indicators
Non-volatile memory for scenes, schedules, timers and last state storage

Control Methods

Scene selection and current status update through:

Touch	Direct operation via front panel touch switches
App	iOS and Android phone control via the GO App
Voice Control	Alexa GO Voice Skill Google Home GO Voice Action IFTTT GO by Raylogic Service Siri Shortcuts

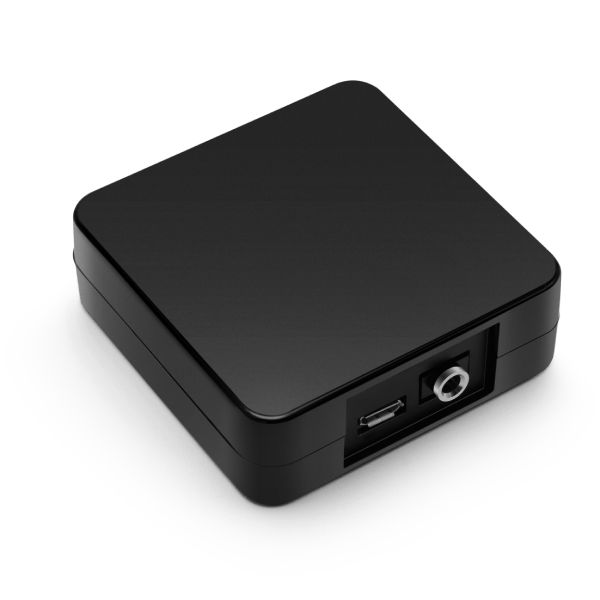

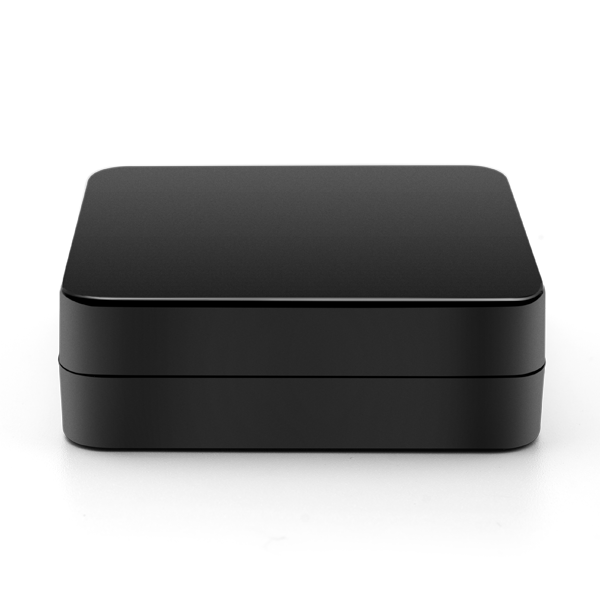

IRB

Wide angle IR blaster for AV/Media/HVAC devices

2 module table top/wall mounting enclosure
Width: 50 mm
Height: 40 mm
Depth: 20 mm

Wi-Fi 802.11 b/g/n AES 256 secured
Wi-Fi SSID strength and diagnostics
GO Cloud access using secure TLS 1.2
Firmware update via secure OTA
Third party control and large volume deployment via an additional hub

20Khz - 60Khz IR command emission
Online app database
Configurable repeat and delay settings
1 x 3.5 mm socket for external wired IR emitter
1 x internal high power omnidirectional phased IR emitter array

DC 5V 1A via USB connector and supplied adapter

Up to 6 devices can be controlled with large command size and function count
Discrete AC power and fan speed control*
Discrete AV equipment power commands*
Triggers IR commands for given scenes, schedules and timers

Control Methods

App	iOS and Android phone control via the GO App
Scene Keypads	Fixed multi-way control via in-wall GO Scene Keypads
Voice Control	Alexa GO Voice Skill Google Home GO Voice Action IFTTT GO by Raylogic Service Siri Shortcuts
